Windscreen mount

Simple brackets, basic tools

I recently bought a decent universal windscreen on Lazada. Unfortunately, its mounting hardware turned out to be incompatible with the GPX 250 Twin. A few simple homemade brackets solved that.

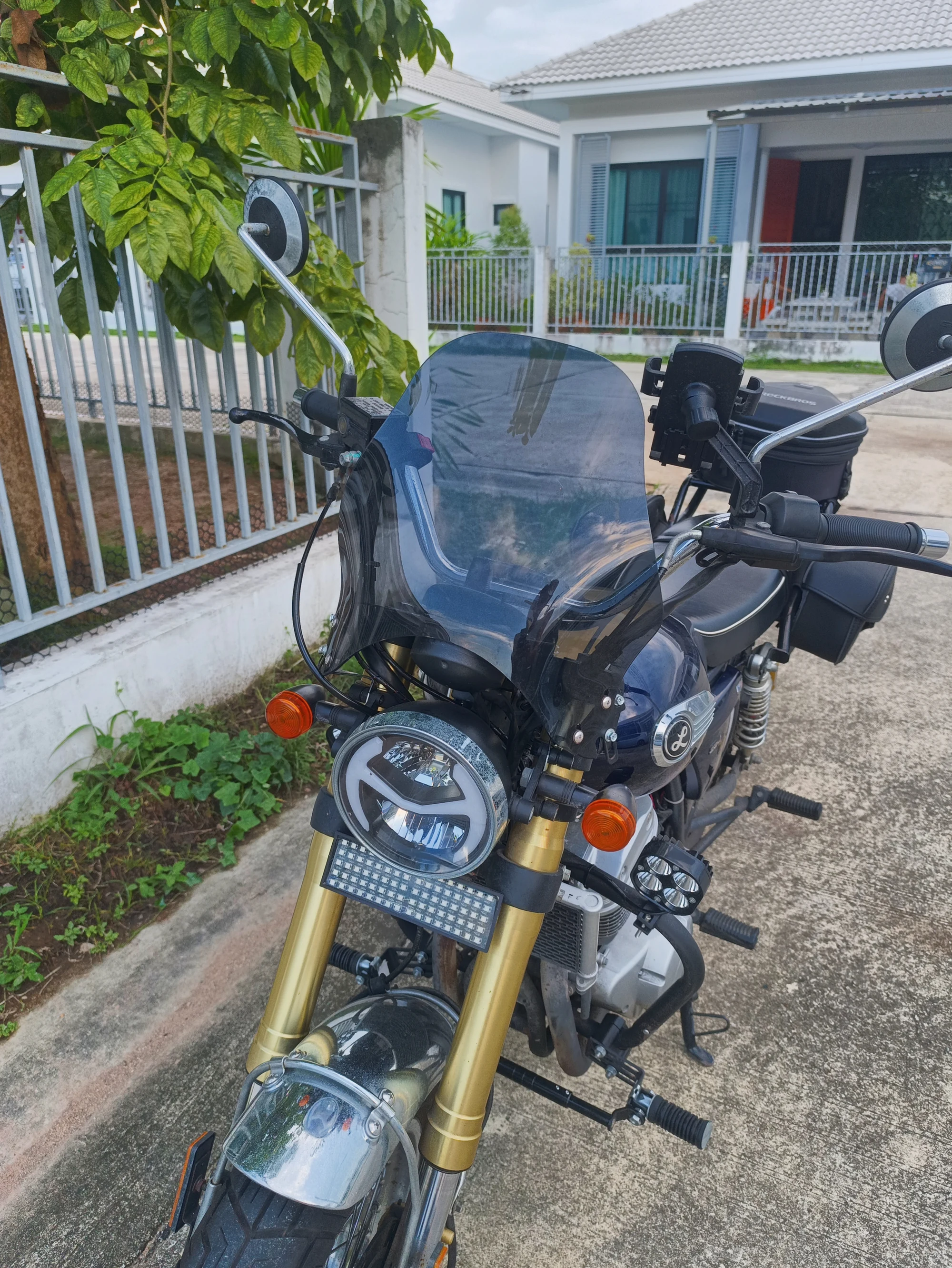

Front view of the universal tinted windscreen installed on my GPX 250 Twin

From my workbench

Making a universal windscreen fit

The Lazada windscreen on the bike, using brackets made from perforated steel strip.

A hardware-store solution

The fix is straightforward: a length of general-purpose perforated steel strip, pliers, a file and electrical tape. You can buy all of these at your nearest hardware store.

Bend, trim and test-fit

I bent the strip to fit the bike. Any excess length can easily be snapped off with pliers. The brackets attach under the existing headlight mounting fasteners at the bottom and the instrument-cluster mounting fasteners at the top.

For the lower mounting point, I had to file 4 mm off one edge of the first 15 mm of the strip to make that end narrower. Once the brackets had been test-fitted, I removed them and wrapped them in electrical tape.

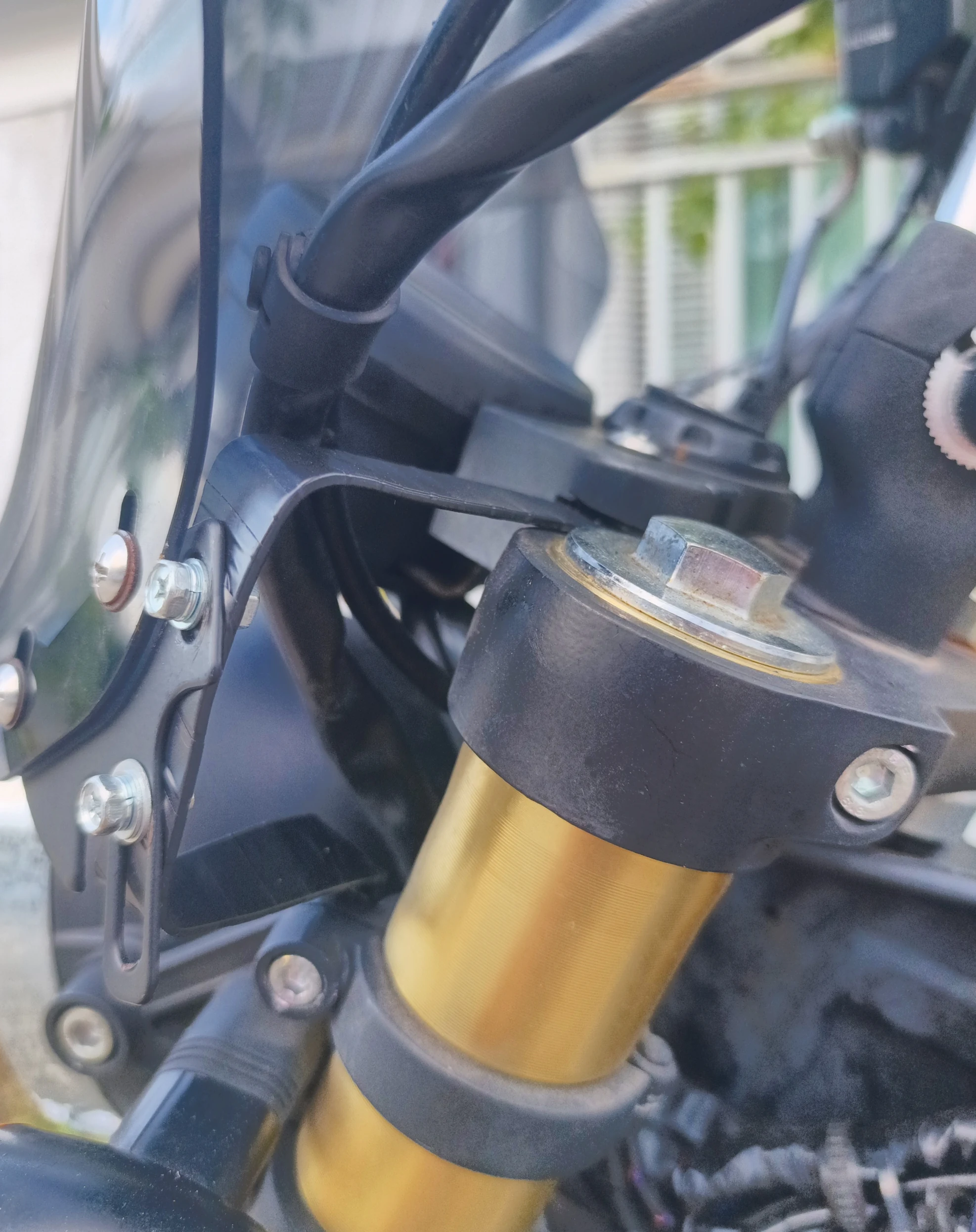

Tape-wrapped upper windscreen bracket running back towards the stock instrument-cluster mounting point
The upper bracket, bent to fit and wrapped in electrical tape.

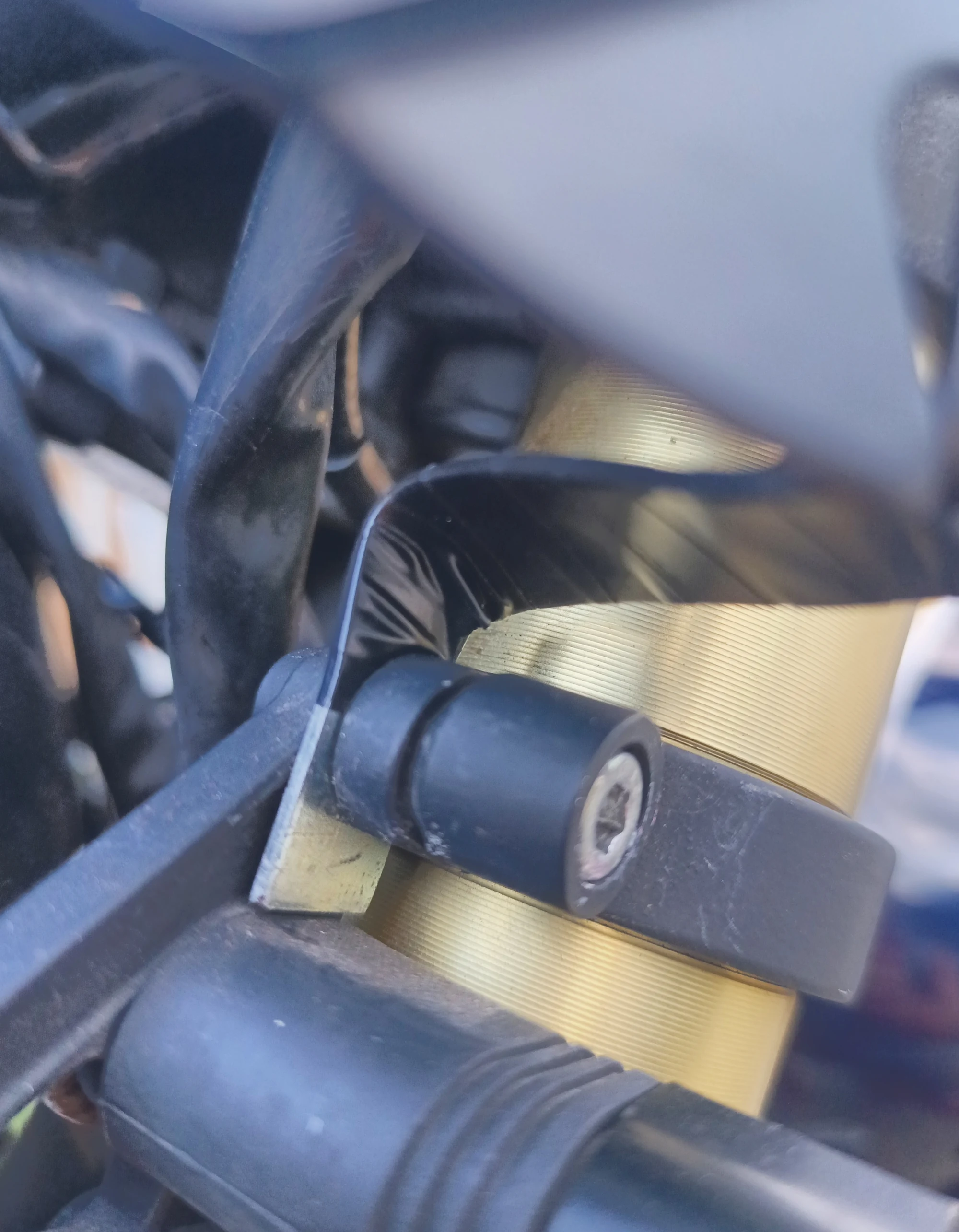

Close-up of the lower windscreen bracket at the existing headlight mounting point
The lower mounting point. The first 15 mm of the strip needed narrowing by 4 mm along one edge.

A little clearance around the ignition switch

The plastic ignition-switch cover also needed a little filing to clear the bracket. I filed it to fit, checking the clearance on the bike.

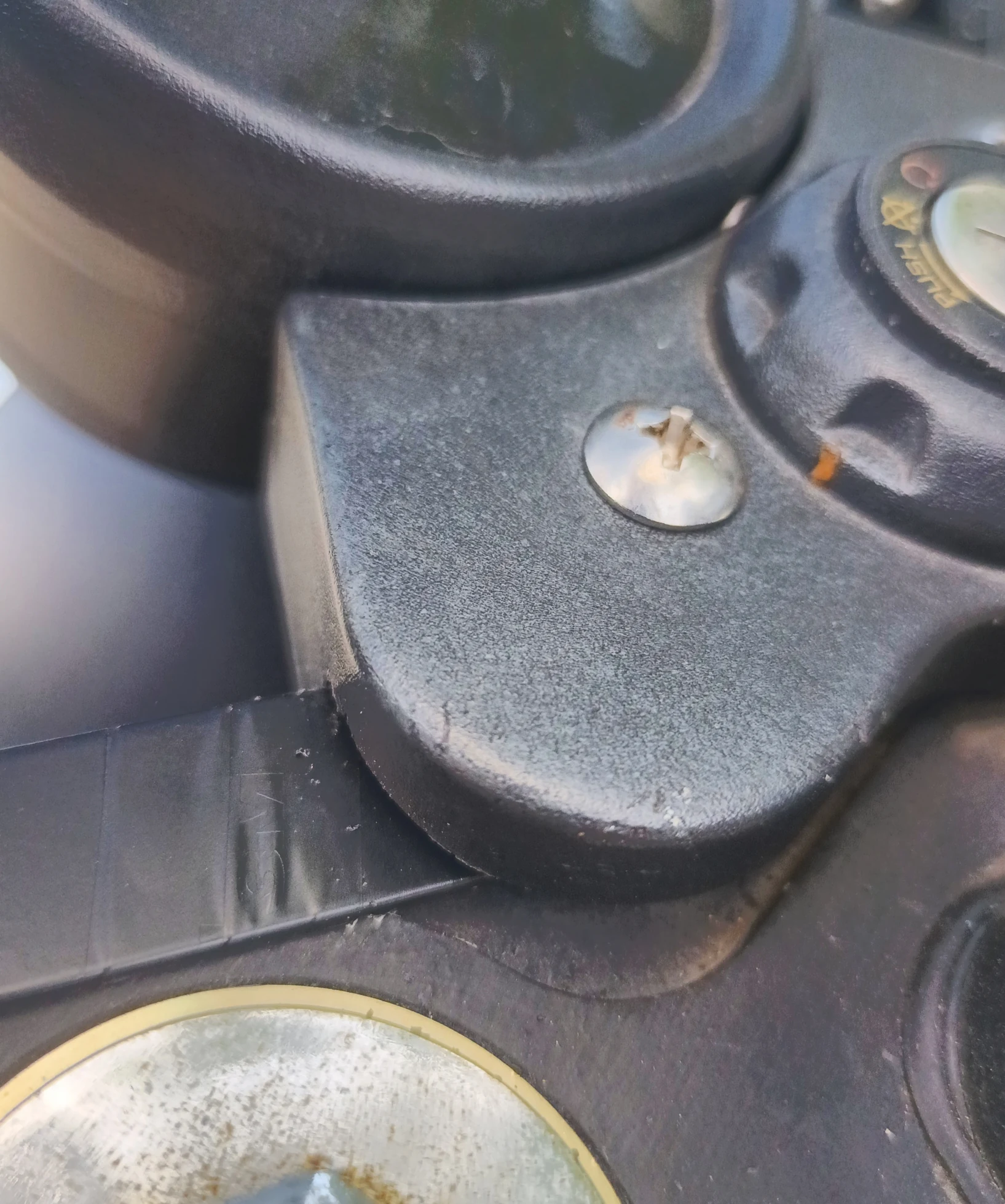

Close-up of the ignition-switch cover filed for clearance around the tape-wrapped windscreen bracket
The small relief filed into the plastic ignition-switch cover to clear the bracket.

Part of my GPX 250 Twin Brighton workshop journal.
